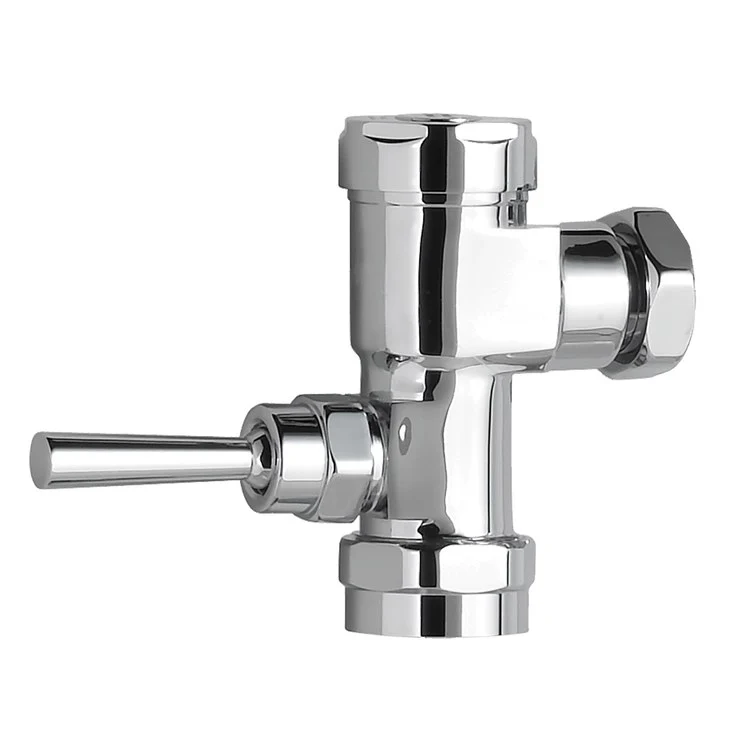

Exposed Retrofit Manual 3/4" Top Spud Urinal Flush Valve 1.0 GPF

American Standard manual flush valves are designed to meet the demands of high-use space with labor-saving installation, water-saving operation, and time-saving maintenance and care. This 1.0 gpf manual flush valve has a self-cleaning brass piston with integral wiper spring to prevent clogging and reduce maintenance. The piston valve remains closed and does not need to be reset after loss of water pressure. Features a non-hold open handle, chloramine-resistant EPDM seals, and an adjustable tailpiece for rough-in Flexibility. Requires no external volume adjustment. For use with 3/4" top spud urinals. Designed for retrofit installations for existing industry standard manual and electronic flush valves. Does not include vacuum breaker assembly, angle stop and sweat solder kit.

• 0.5 gpf
• Piston operation delivers superior flush accuracy and repeatability
• Positive seal for leak-free performance
• ADA compliant
• Can be installed right or left-handed
• 11-1/2" rough in
• Manual valve only for retrofit, piston-type
• Does not include stop valve, inlet assembly, spud coupling or vacuum breaker tube
